| Input | Auto-switching 100V-240VAC 50/60Hz |
| Input Cable | 16AWG U.S.SPT-2/ EU-H03W AUST/NZ-H03WV |
|
Output
|
6V 6A Lead-Acid batteries
13.8V 6A Lead-Acid batteries 14.4V 4.5A LiF3PO4 batteries 12V 6A DC Adapter |
|
Max Voltage
|
14.5V Lead-Acid (Pb) Battery Charging
14.9V AGM Battery Charging 14.4V LiFePO4 Battery Charging |
| Min. Starting Voltage | 2.0V (the charger can’t charge battery under 2.0V) |
| Fuse Protected Cables | 10A |
| Overcharge Protection | Yes |
| Short Circuit Protection | Yes |
| Spark Proof | Yes |
| Reverse Polarity Protection | Yes |
| Cooling | Natural |
| Operating Temperature | -10~50 degree |
| Waterproof | IP64 |
|
Battery Capacity
|
Charging and maintenance all 12-120Ah
Lead-Acid Batteries Charging 5-36Ah LiFePO4 batteries |
| Dimensions (mm) | 153(l) x 78(w) x 57(d) |

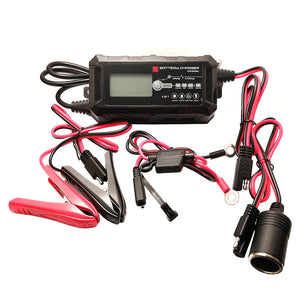

| Clamp Cable Length | 23.6 inch |
| Ring Terminal Cable Length | 23.6 inch |
| Cigarette Cable Length | 23.6 inch |
▬
WARRANTY
5 Years
▬
FEATURES
• Smart, light and portable
• Multiple safety protections
• Chargers all lead-acid and Lithium Batteries
• Charger range up to 120 Amp-hours
• Maintenance charge all battery sizes
• Extends battery life
• Restores your battery.
• Detects sulfation and acid stratification

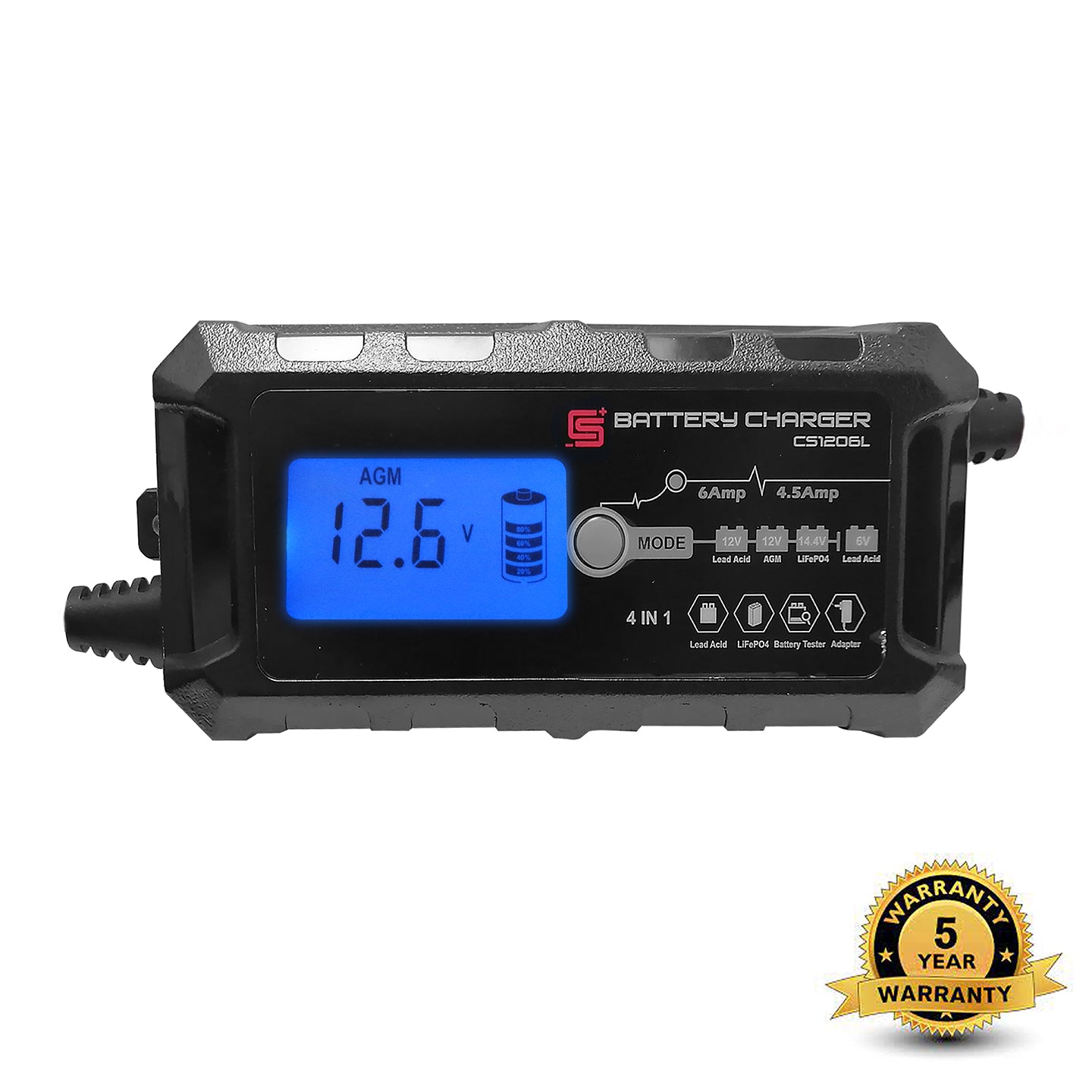

• LCD signal indication
